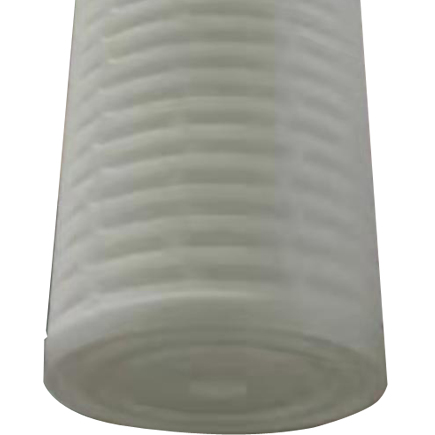

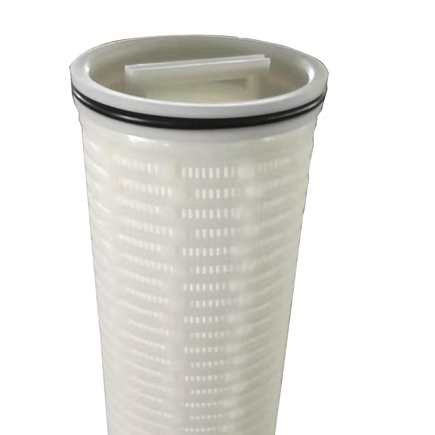

PHF Series high flow pleated filter cartridges
PHF Series high flow pleated filter cartridges are made from depth fine PP non-woven fabrics. The filter has a big diameter of 6 inch/152mm and no inner core, single open.The inside to outside flow pattern ensure that all the particles will be intercepted at the inside of the filter.The long service life and high flow rate result in low investment and less manpower in many applications.
Application:
Industrial Water Treatment
Power & Utilities
Oil & Chemical
Mining
Product Specification:

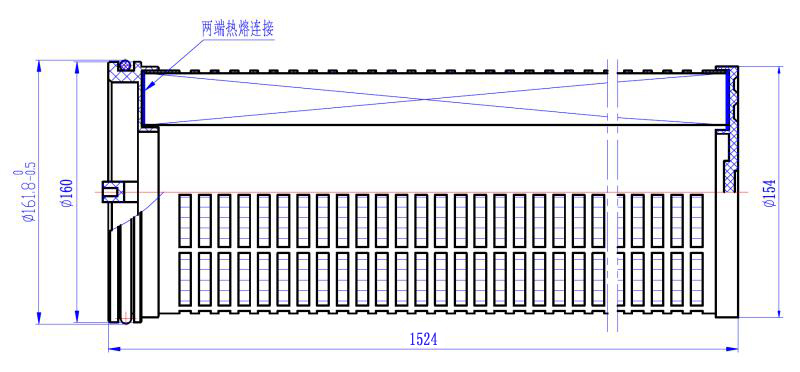

| Dimension |
Out Diameter: Ø 152mm
Length: 20”, 40”, 60”
|
|
Material of Constructions |
Media：PP
Cage/End cap: PP
Sealing：EPDM, Viton, E-FKM, Silicone
|
| Performance |
Max. Operating temperature：80℃ Max. Operating DP：3bar@21℃ |
